Intermittent fault

Check the signal lead between:

• between central electronic module (CEM) 14C and fuel pump relay 2/23 1 (large illustration) and fuel pump 1 (small illustration).

for a short circuit to voltage supply as described in Short-circuit to supply voltage, intermittent faults .

Do the necessary corrective action.

Additional information:

• To access/replace the central electronic module (CEM), see Central electronic module (CEM), replacing
• To connect a test box, see Connecting the breakout box
• For information on signals, see Signal specification .

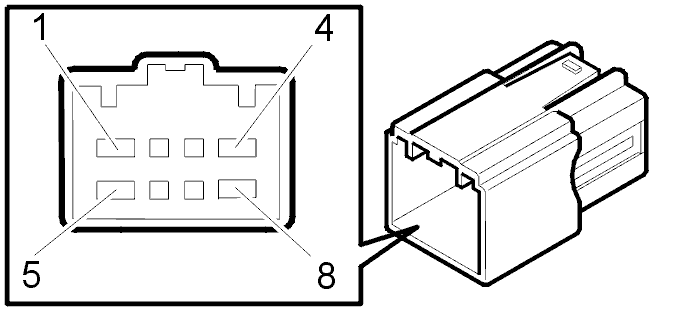

Fig 2: Identifying Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Ohm Meter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Relays

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to Information
