Installing lifting tools

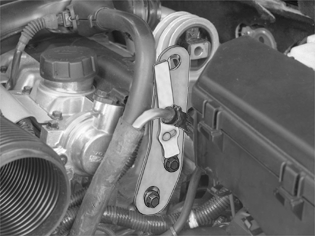

Fig 1: Fixture 999 7018 Installed On Left Hand Side Of Engine At 2 Screws
GLL109647Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the engine cover (applies only to diesels).

Ensure that the front wheels are pointing straight ahead

Lock the steering wheel by removing the ignition key

Do not turn the front wheels so that the position of the steering gear changes. This could damage the contact reel for the SRS-system.

Install lifting lug 9997018 (applies only to 6 cylinder engines).

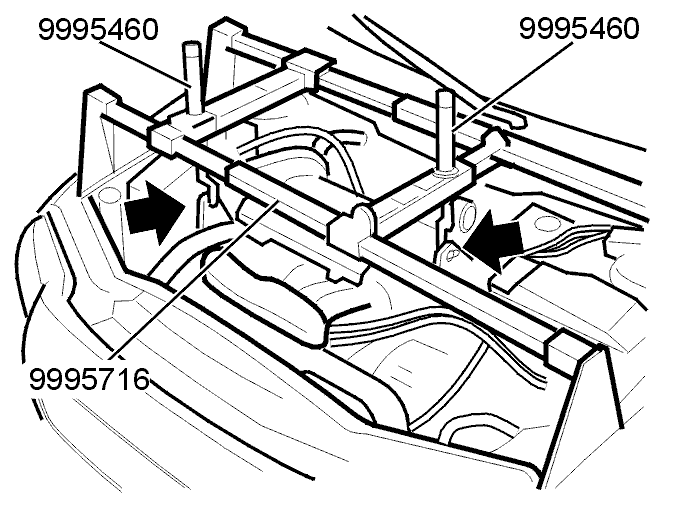

Fig 2: 999 5716 And Lifting Hooks 999 5460 Installed
GLL105394Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the lifting device 9995716 and lifting hooks 9995460 .

Lift the engine to relieve the load on the engine pads.
