Removing the lifting tools

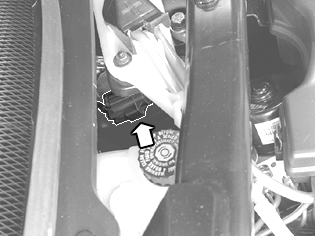

Fig 1: Connector At Brake Servo
GLL109976Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the car.

Remove the lifting tools.

Install the engine cover (diesel engines only).

Applies to cars with speed related power steering:

Connect the connector at the brake servo (left-hand drive cars).

Connect the connector at the right-hand suspension turret (right-hand drive cars).

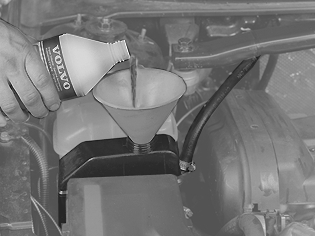

Fig 2: Topping Up Oil Level In Servo Reservoir
GLL109974Courtesy of VOLVO CARS OF NORTH AMERICA.

Top up the oil level in the servo reservoir. Bleed the system.

For the correct oil quality, see specifications.

WARNING:

Avoid skin contact with the oil.

Repeatedly turn the steering wheel to full lock.

Top up the oil if necessary.

Lower the car.

Apply the handbrake.

Start the engine.

A:  Turn the steering wheel slowly to the right. Hold on full lock for 2 seconds.

B:  Turn the steering wheel slowly to the left. Hold on full lock for 2 seconds.

Repeat operations A and B approximately 10 times.
