Installing delivery lines

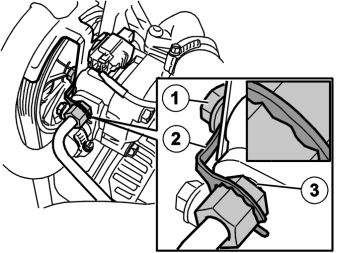

Fig 1: Identifying Screw, Lock Bracket & Pipe Coupling Area At Power Steering Pump
GLL104714Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Tighten the screw (1). Tighten to 24 Nm  .

NOTE:

There may be a gap (3) of a few millimeters between the pipe coupling and the power steering pump. Bend the bracket so that the twelve edged mounting on the bracket is on the nut.
