Sub-Frame Front, Replacing: Preparation

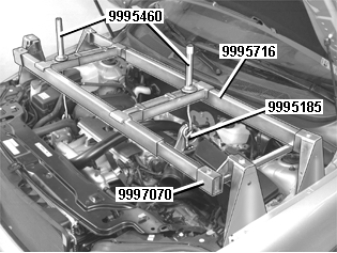

Fig 1: Identifying Fixture Kit, Lifting Beam And Lifting Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install lifting lug 9997018 on the left hand side of the engine at the 2 screws.

Lock the lifting lug using the snap ring.

Install lifting tool 9995716 converted with kit 9997070 . Install lifting hooks 9995460 .

Lift the engine to relieve the load on the engine pads.

Remove the front wheels.
