Gear Selector, Internal

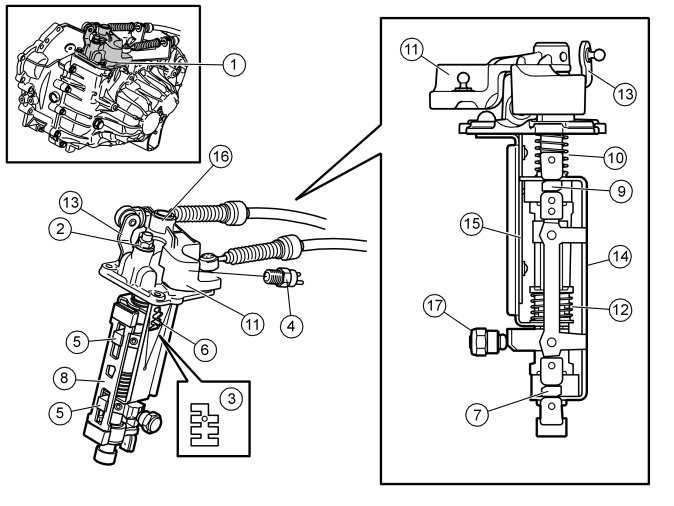

Fig 1: Identifying Gear Selector Assembly
GLL151625Courtesy of VOLVO CARS OF NORTH AMERICA.
Position Component Position Component
1 Complete control unit 10 Spring
2 Ball limiter, 5-6 control 11 Lever for lengthwise movement
3 Gearshift gate 12 Spring
4 Back-up (reversing) lamps switch 13 Lever for lateral movement
5 Flange 14 Catch plate
6 Gearshift gate pin 15 Carrier plate
7 Lower gear selector 16 Bleed cap
8 Gear selector rod 17 Ball limiter for gear selector
9 Upper gear selector

The gear selector is in a single complete unit with the exception of the ball limiter for the gear position. This is threaded in the transmission housing. The gear selector is held in position by 4 screws. 2 guide pins in the control housing and a needle bearing in the bottom of the gear selector unit control the position in the transmission housing.

Back-up (reverse) gear in the gear selector assembly is furthest to the right and down. Neutral is between 3rd and 4th.

The back-up (reversing) lamp switch is in the control housing and is affected by the shaft for lateral movement. The back-up (reversing) lamp switch is directly connected to the central electronic module (CEM).

The gear selector unit must not be dismantled. In the event of a fault the whole gear selector unit must be replaced.

4 gear selector forks transfer the movement from the control to the relevant coupling sleeve.
