Installing the sensor

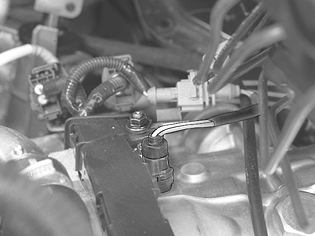

Fig 1: Identifying Speed Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the O ring for the new vehicle speed sensor (VSS).

Install the sensor. Tighten to 5.5 Nm  .

Install:

• the bracket and cable duct. Tighten to 5.5 Nm
• the connector.
