Installing Position Sensor

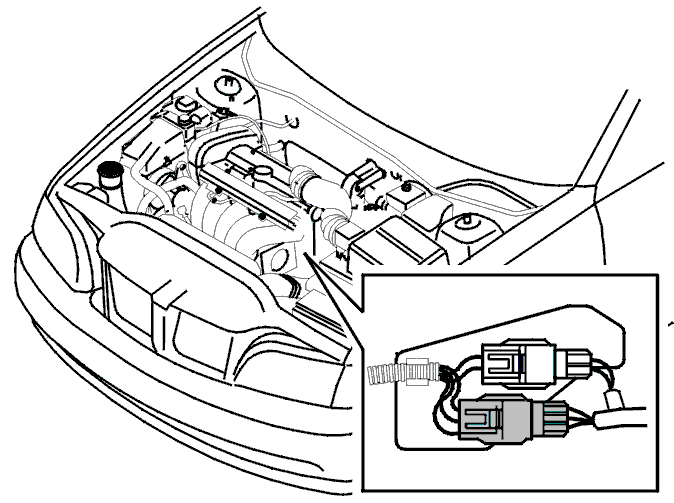

Fig 1: Identifying Position Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector.

Install

• the sensor. Secure the wiring

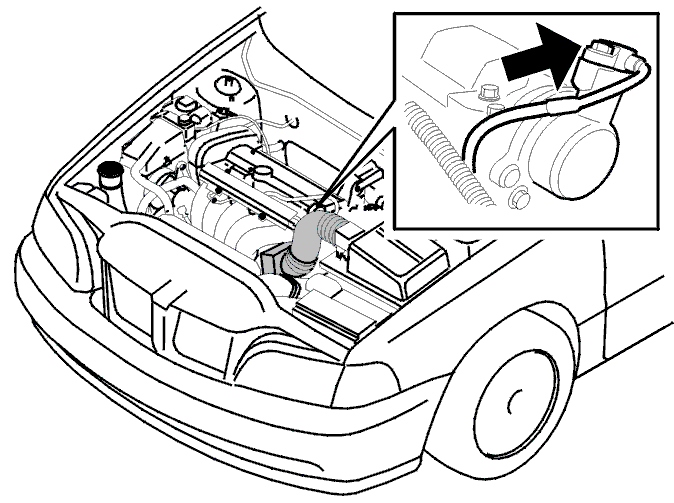

Fig 2: Identifying Pipe Between Air Cleaner And Throttle Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the throttle body (TB) with new gasket  . Tighten to 17 Nm  (12.54 lb.ft)
• the pipe between air cleaner (ACL) and throttle body.
