Removing The Connector And The Cover

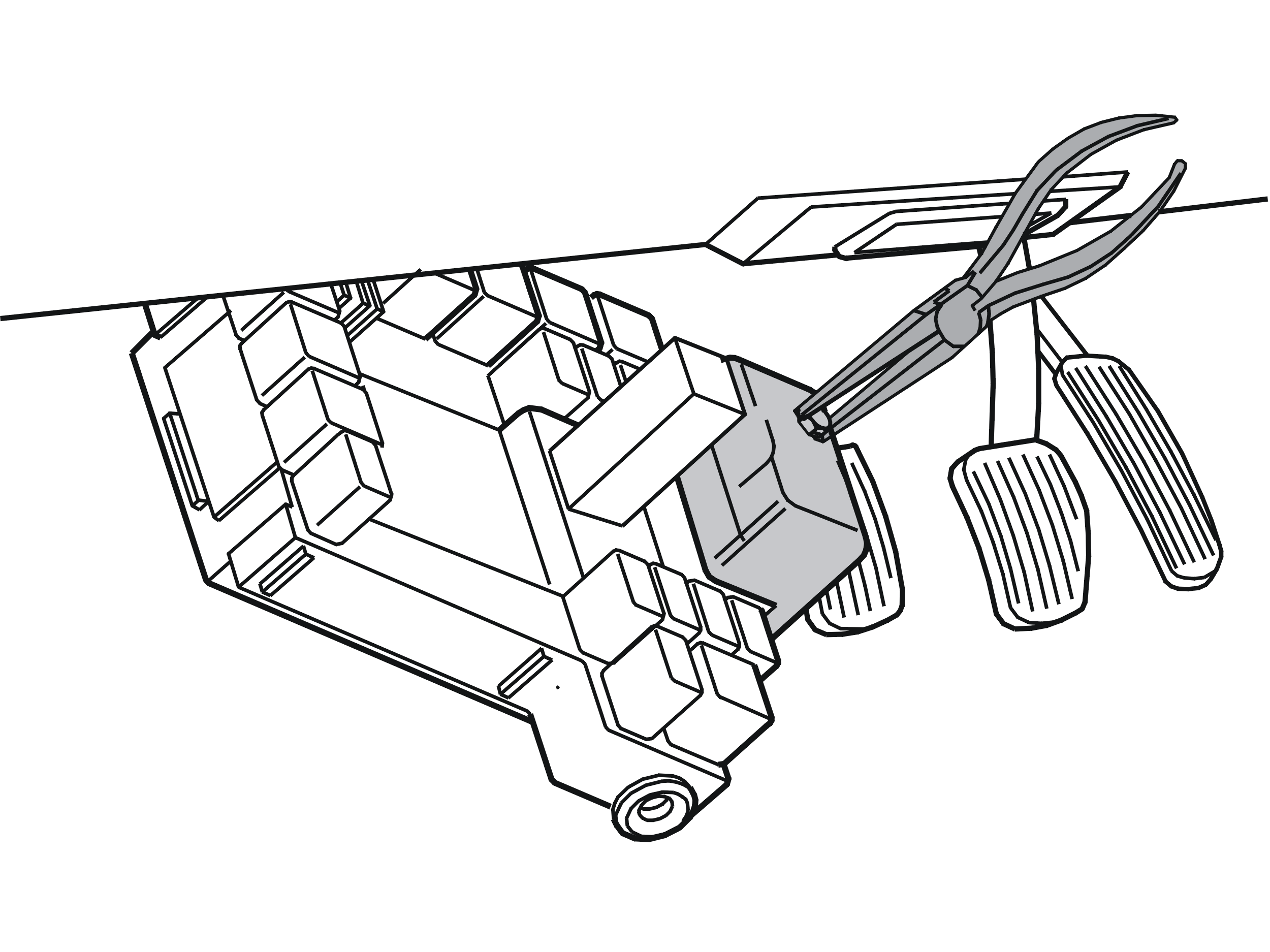

Fig 1: Disconnecting Connector Using Pliers

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Slacken off the screw holding the connector so that it releases from the threads. Check that the screw is free with your fingers.
  NOTE:

  Do not damage the pins.

• Use pliers to disconnect the connector. Grip the screw and pull it straight outwards so that the connector and cover follow.

Fig 2: Identifying Relay Box In Passenger Compartment/Cargo Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove all relays and shunts bridged to the control module. Note the locations.

Fig 3: Removing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Release the catch on the rear. Use a screwdriver
• Lift and pull out the control module.

Fig 4: Identifying Control Module Terminals (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the control module connector is intact.

Fig 5: Identifying Control Module Terminals (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
