Transferring Components

Fig 1: Identifying Bevel Protractor

Courtesy of VOLVO CARS OF NORTH AMERICA.

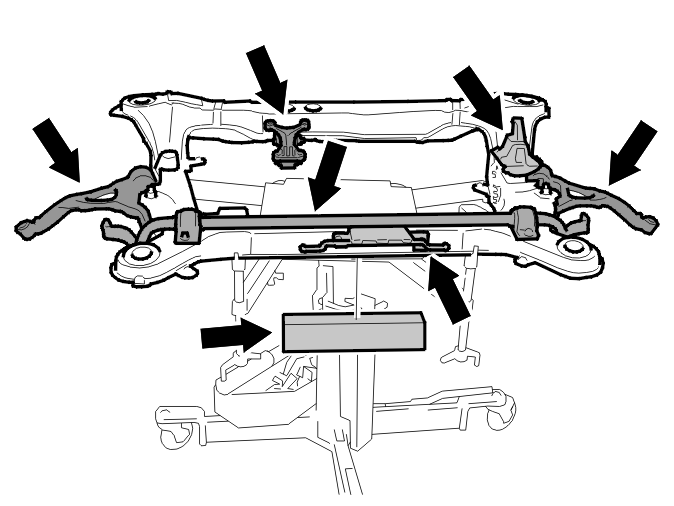

Transfer:

• the control arms. Use new screws and new nut. Tighten the front screws. Tighten to 65 Nm  . Angle-tighten 90°  . Use bevel protractor 9512050 . Tighten the rear screw. Tighten to 105 Nm  . Angle-tighten 90°
• the anti-roll bar. Tighten to 60 Nm
• the right-hand engine mounting. Tighten the screws. Tighten to 65 Nm  . Angle-tighten 60°
• the exhaust mounting bracket. Tighten to 50 Nm
• the shock absorber Tighten to 50 Nm
• lower torque rod. Tighten to 65 Nm  . Angle-tighten 90°  .

Install new pipe/hose holders.
