Removing the cargo compartment side panel

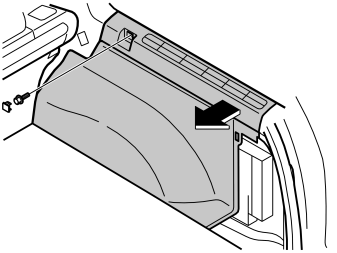

Fig 1: Removing Cargo Compartment Side Panel
GLL107080Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

CAUTION:

Grasp the rear edge so that the clips release. Change your grip and pull off the clips by pulling forward.

Fold the panel down so that it is parallel with the floor and lift upwards.
