Internal Lighting

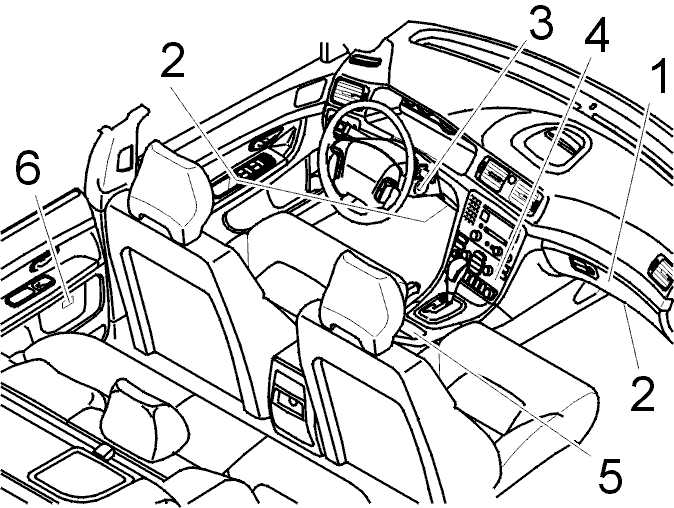

Fig 1: Internal Lighting (1 Of 2)
GLL103119Courtesy of VOLVO CARS OF NORTH AMERICA.

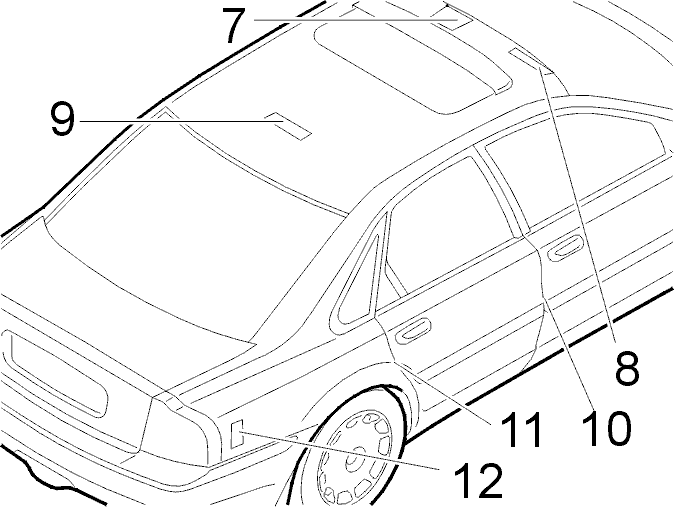

Fig 2: Internal Lighting (2 Of 2)
GLL103120Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Glove compartment lighting
  2. Front courtesy lighting
  3. Ignition key lighting
  4. Lighting for the ECC control module and dashboard environment panel
  5. Lighting, front ashtray
  6. Courtesy lighting, rear.
  7. Interior lighting and the upper electronic module
  8. Vanity mirror lighting
  9. Rear reading lamp
  10. Front door warning lamp
  11. Rear door warning lamp
  12. Cargo compartment lighting.
