Location Of Components

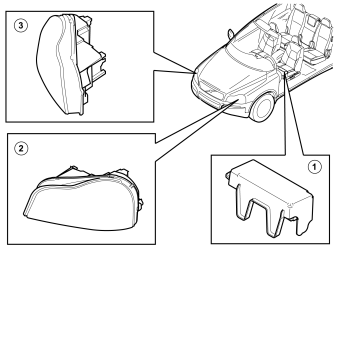

Fig 1: Locating Headlamp Components
GLL156340Courtesy of VOLVO CARS OF NORTH AMERICA.

Overview

  1. Headlamp Control Module (HCM)
  2. Left headlamp control unit (LHCU)
  3. Right headlamp control unit (RHCU)
