Multi-Function Bracket

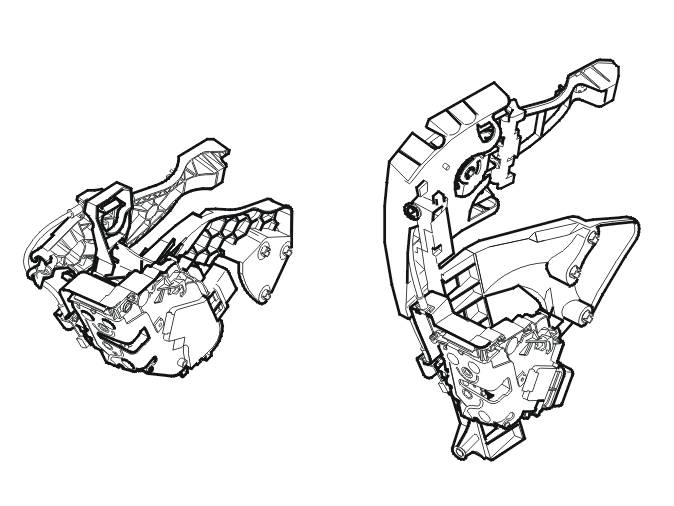

A multi-function bracket is installed on the door cassette. The bracket is a plastic component:
- on which the lock is mounted (with a snap fastener and rivet)
- on which the inner bracket for the exterior handle is installed (with two snap fasteners)
- routes water away from the lock
- which contains a glass channel for the window.
The bracket that is installed on the front door cassette is longer than the one on the rear door cassette. The longer bracket is secured to the door with an extra screw at the bottom. The glass channel for the window goes down into the extended section.
