Sun Roof

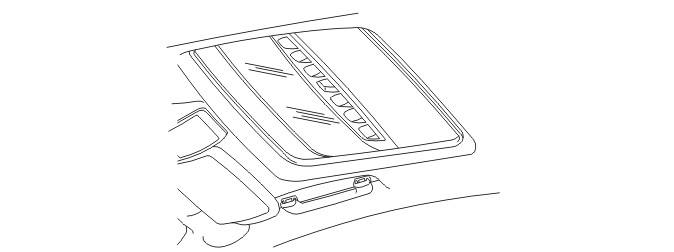

The sun roof is operated using a switch in the same unit in the roof as for the front reading lamps. The sun roof can be opened and closed as well as angled up slightly at the rear edge.
The sun roof is driven by a motor which is in the roof, in front of the sun roof. The position of the sun roof is determined by two sensors.
The sun roof has a sun roof module (SRM). The sun roof module (SRM) communicates with the central electronic module (CEM) using serial communication.
There are diagnostics for the sun roof.
