8. Supplemental Restraint System Control Module (SRS)

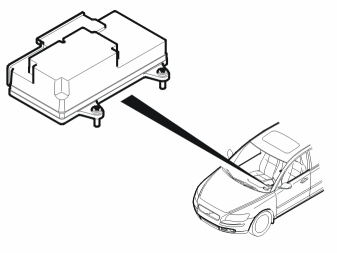

Fig 1: Locating Supplemental Restraint System Control Module (SRS)
GLL140871Courtesy of VOLVO CARS CORPORATION

The supplemental restraint system module (SRS) is between the parking brake and the gear selector lever in the center console.

WARNING:

Never install vehicle accessories on or near the supplemental restraint system module (SRS).

See AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (2006, 2007) or AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM (2008-12) .
