Electrical Additional Heater (Certain Markets)

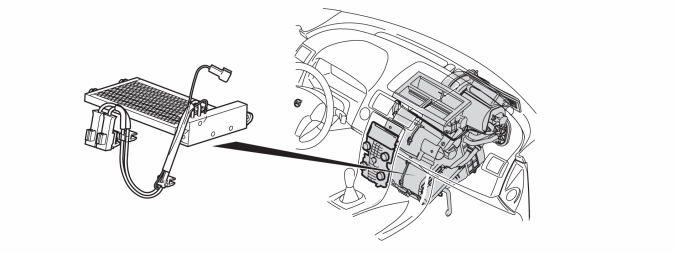

Fig 1: Identifying Electrical Additional Heater (Certain Markets)
GLL156384Courtesy of VOLVO CARS CORPORATION

This comprises a heater element with ceramic resistors located in the heater housing. The air that flows into the passenger compartment is heated directly.
