Replacing Backrest Padding

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

Replace the backrest upholstery according to Upholstery back rest, replacing .

Fold out and release the protective pad and turn the backrest adjustment and lumbar adjustment knobs.

Press out the clip in the rear of the protective pad.

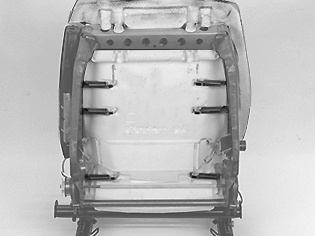

Fig 1: Removing Six Spring On Reverse Of Foam Padding

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the six springs on the reverse of the foam padding.

Remove the wiring for the backrest and seat heater.

Replace padding

Install a new seat heater element according to Heater pad, replacing .

Install:

In reverse order
