Control Arms

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

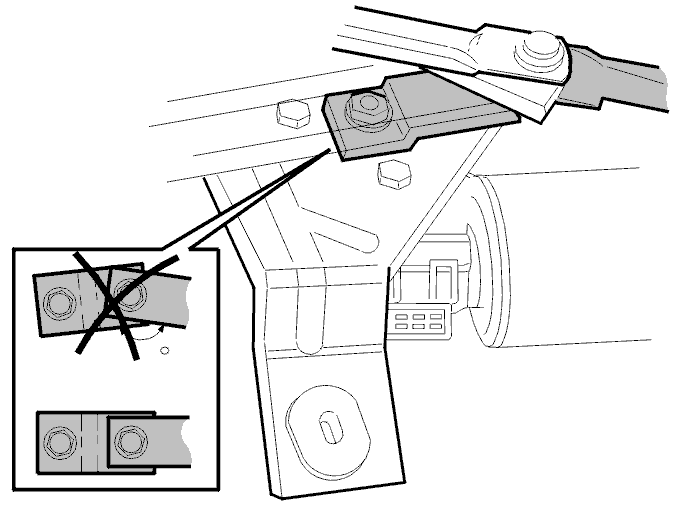

Fig 1: Identifying Control Arms

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the control arms from the link arm
Remove the nut from the link arm
Run the motor to the parked position
Adjust the position of the link arm. The link arm must be parallel with the outer control arm
Apply thread sealant liquid P/N 9961053-2 to the threads of the motor shaft
Tighten the nut. Use a 20 mm fixed wrench on the link arm as a counterhold
Install the control arms
Test drive the mechanism.
