Engine compartment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

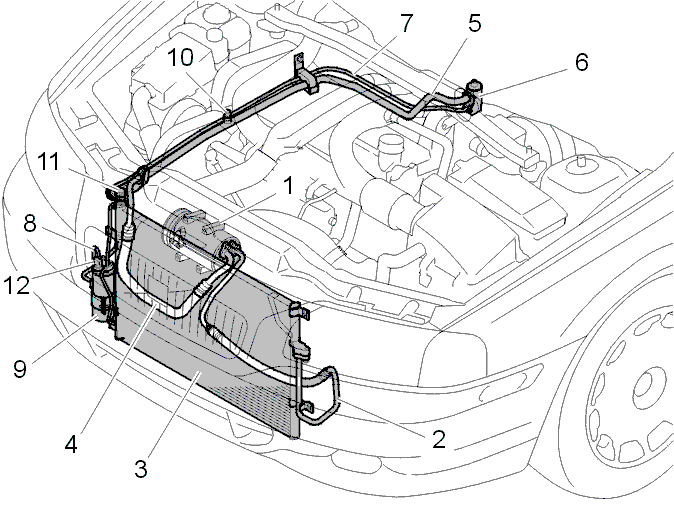

Fig 1: Identifying Climate System Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

1 Compressor.
2 Compressor - Condenser hoses and pipes.
3 Condenser.
4 Hoses and pipes at the junction point of the side member - compressor.
5 Pipe at the expansion valve - junction point side member.
6 Expansion valve.
7 Pipe at the receiver - expansion valve.
8 Intermediate pipe at the receiver - member / expansion valve.
9 Receiver.
10 Service valve.
11 Service valve filling / emptying.
12 Pressure sensor.
