Removing The Spring Strut

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

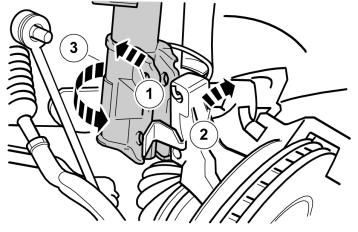

Fig 1: Identifying Anti-Roll Bar

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the wheel
the anti-roll bar link from the spring strut.

NOTE:

Use a Torx wrench as a counterhold so that the boot is not damaged.

Remove the ABS line from the bracket on the spring strut.

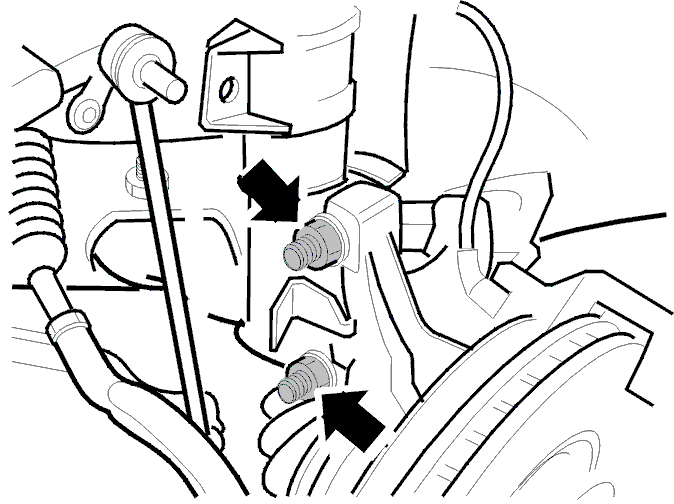

Fig 1: Identifying Retaining Spring Strut Wheel Spindle Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove both the nuts from the screws in the spring strut - wheel spindle.

Fig 2: Securing Wheel Spindle With A Piece Of Wire So That It Cannot Turn Outwards When Removed From Spring Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws for the spring strut wheel spindle.
Secure the wheel spindle with a piece of wire so that it cannot turn outwards when removed from the spring strut.

Fig 3: Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the three nuts holding the shock absorber support plate in the bodywork
the spring strut.
