Breakout Box, Control Module - Activation & Connection
>>
Antenna
>>
Antenna amplifier
>>
Removal
Antenna amplifier: Removal

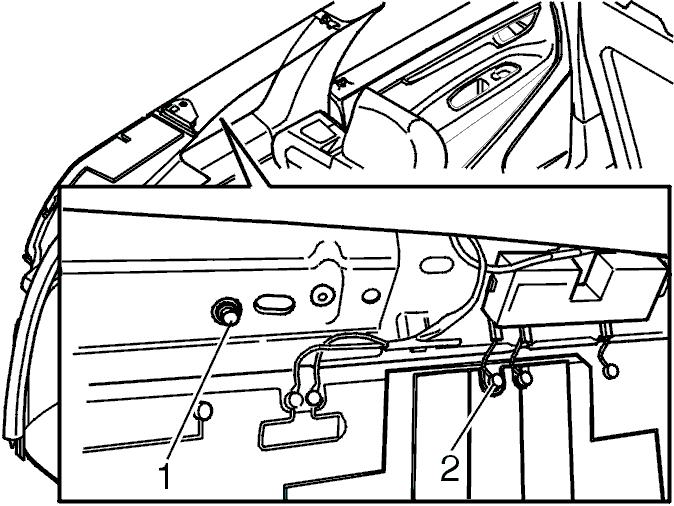

Fig 1: Identifying Antenna Amplifier & Panel Connectors
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove
Panel, cantrail, replacing
Remove the connectors
Unscrew the faulty antenna amplifier (there are two on each side).
