Torque Specifications

CAUTION: Screws coated with a locking fluid or self locking nuts must be replaced with new when reinstalled.

Always use new screws and nuts when angle tightening. Any exceptions to this rule will be indicated in the method.

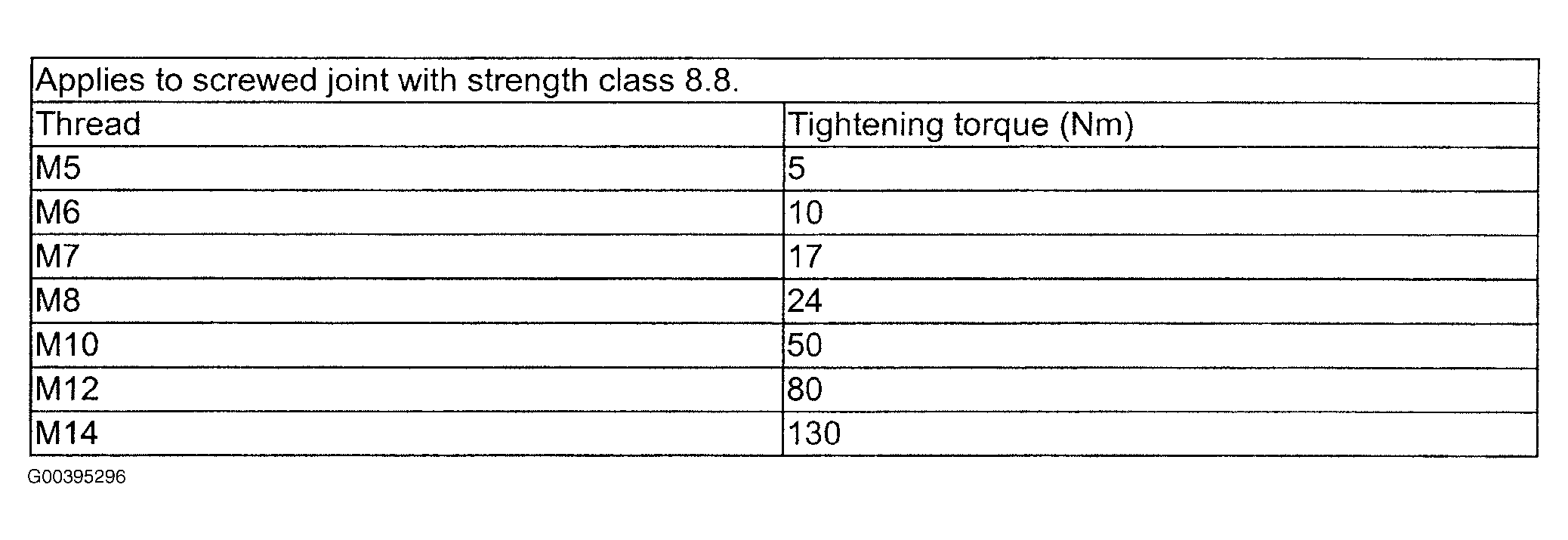

Fig 1: Torque Specifications Table (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

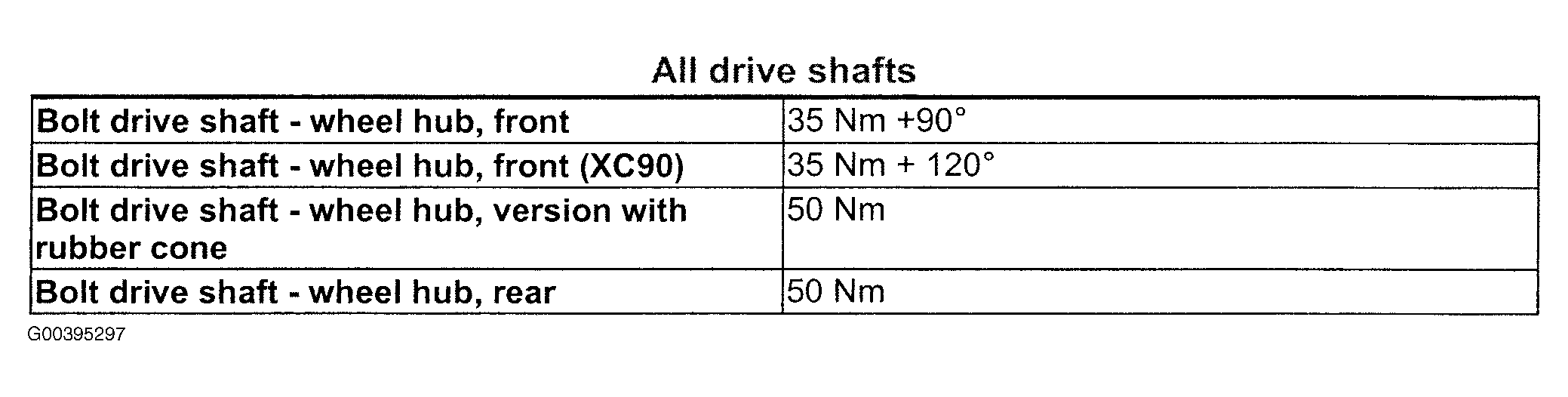

Fig 2: Torque Specifications Table (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

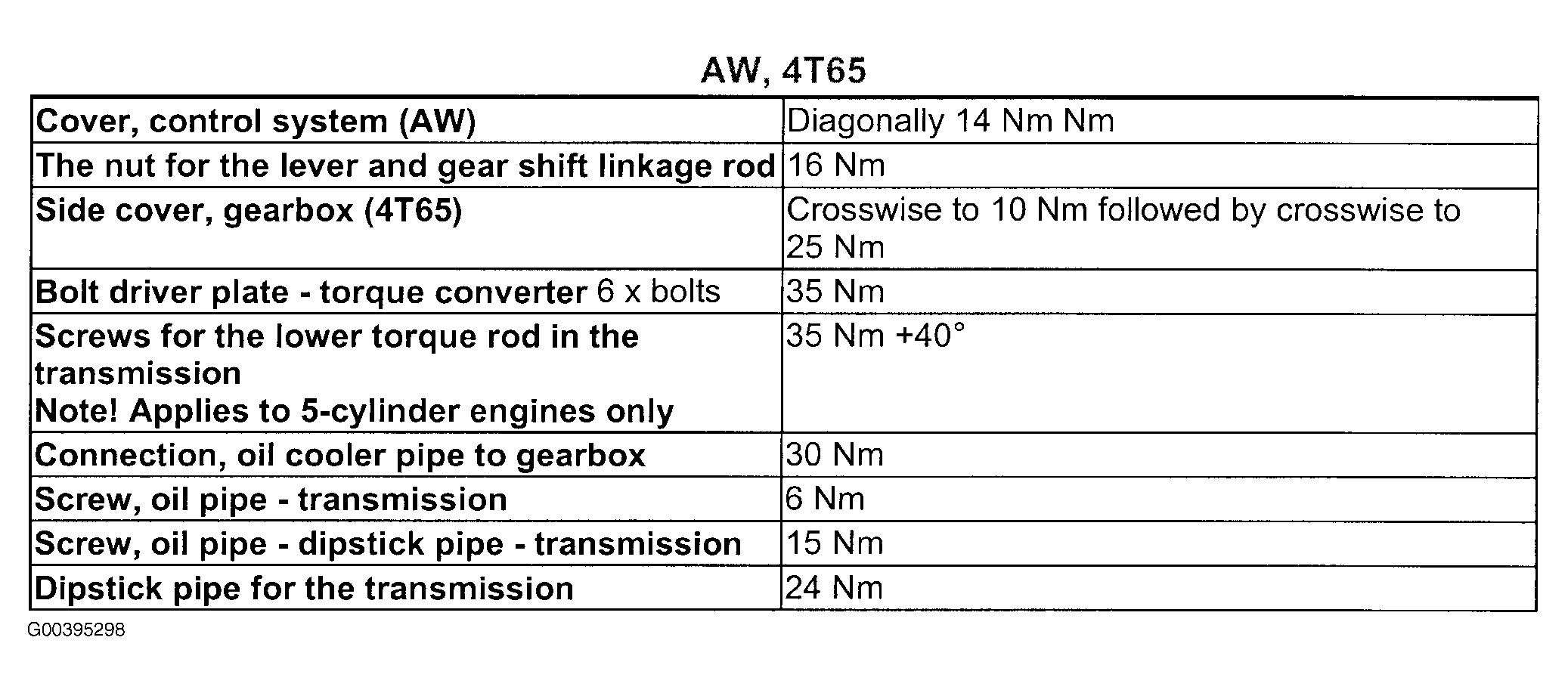

Fig 3: Torque Specifications Table (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

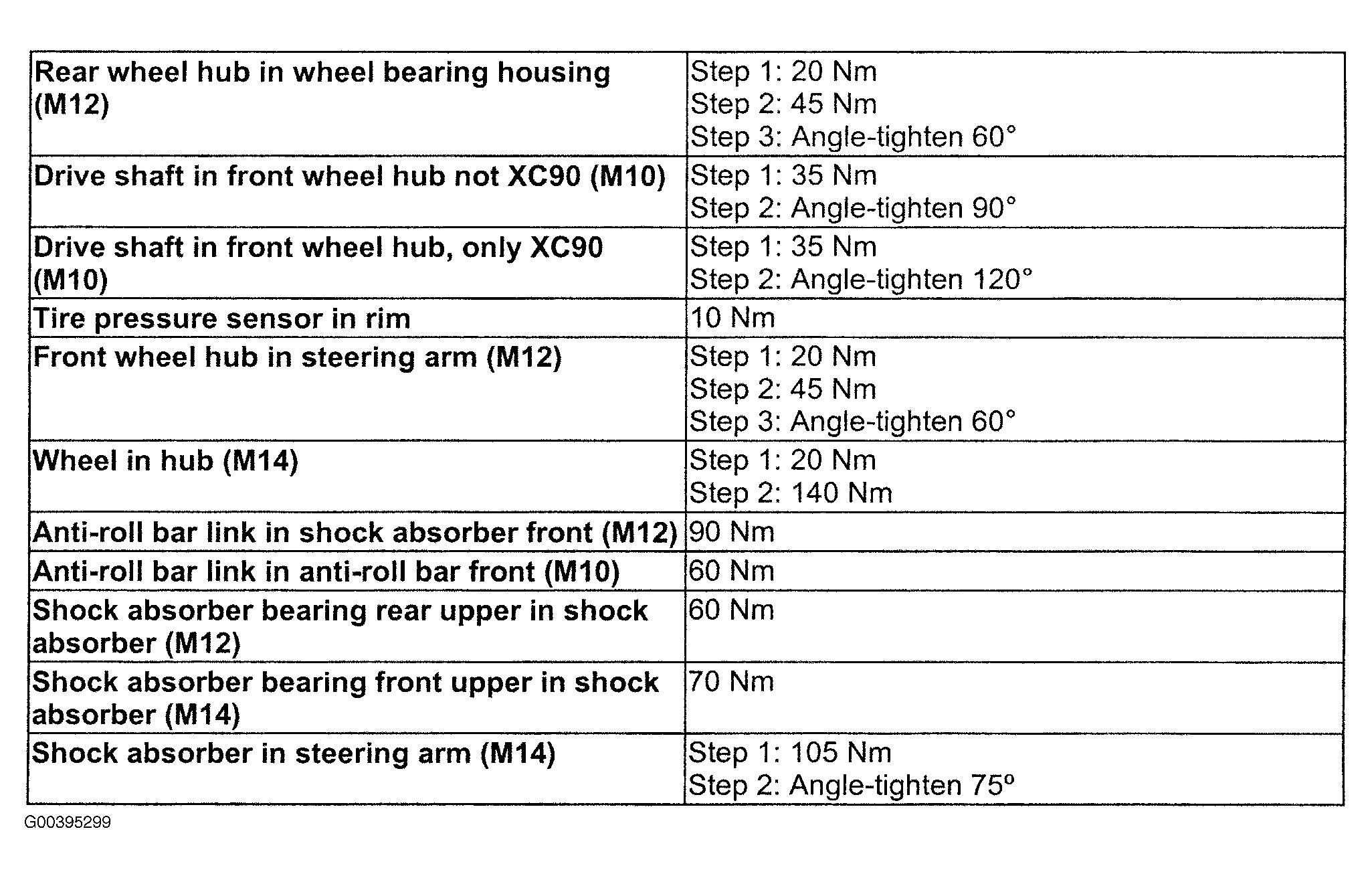

Fig 4: Torque Specifications Table (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.
