Installing engine compartment components

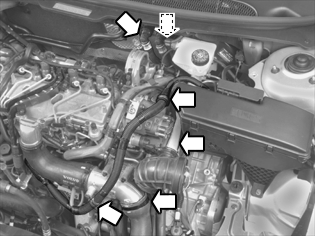

Fig 1: Engine Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the inner of the 2 hose couplings for the passenger compartment heater connecting sleeve in the firewall
• the vacuum hose on the engine pad
• the charge air pipe for the turbocharger (TC)
• the cable harness to the charge air pipe. Use a tie strap
• the hose between the intake manifold and charge air cooler (CAC)
• the clamps for the cable harness on the engine.

Tighten the 1 x M10 nut for the rear engine pad.
