Link System, Roof Panel: Removal: Notes

NOTE:

Removal steps in this procedure may contain installation details.

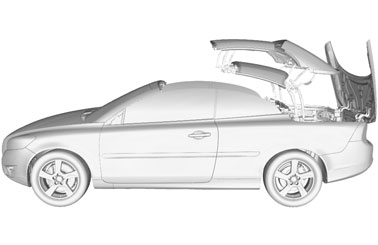

Fig 1: Roof Adjustment Position

Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting, see BATTERY DISCONNECTING AND CONNECTING

Remove the following items:

Front headliner, see FRONT HEADLINER
Convertible Top Center Headliner, see CONVERTIBLE TOP CENTER HEADLINER
Headliner rear, see HEADLINER REAR
Convertible Top Headliner Center Hinge, see CONVERTIBLE TOP HEADLINER CENTER HINGE

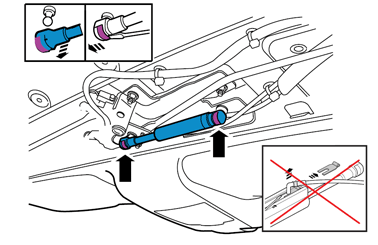

Fig 2: Identifying Cylinder Clips

Courtesy of VOLVO CARS CORPORATION

Remove Convertible Top Position Switch, see CONVERTIBLE TOP POSITION SWITCH

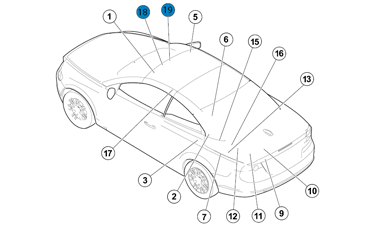

Fig 3: Identifying Roof Panel Components

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

Remove Convertible Top Position Switch, see CONVERTIBLE TOP POSITION SWITCH

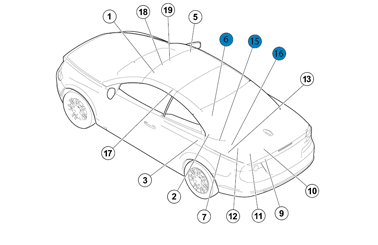

Fig 4: Locating Hall Sensors (6, 15 and 16)

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

Loosen Convertible Top Position Sensor, see CONVERTIBLE TOP POSITION SENSOR

Detach the following items:

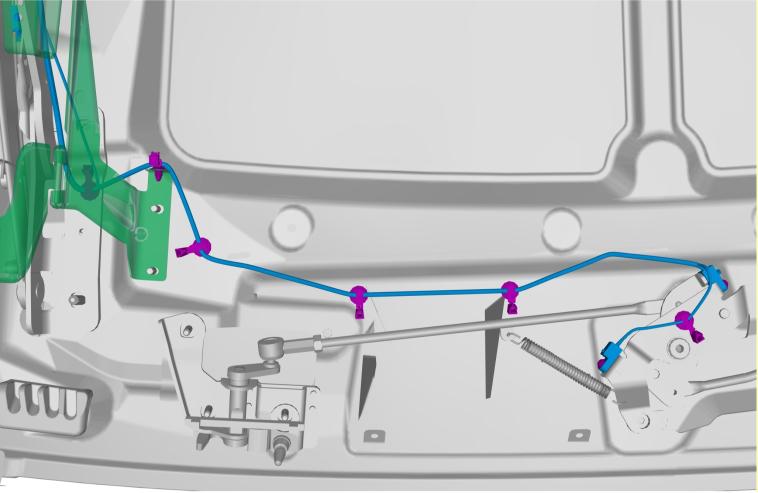

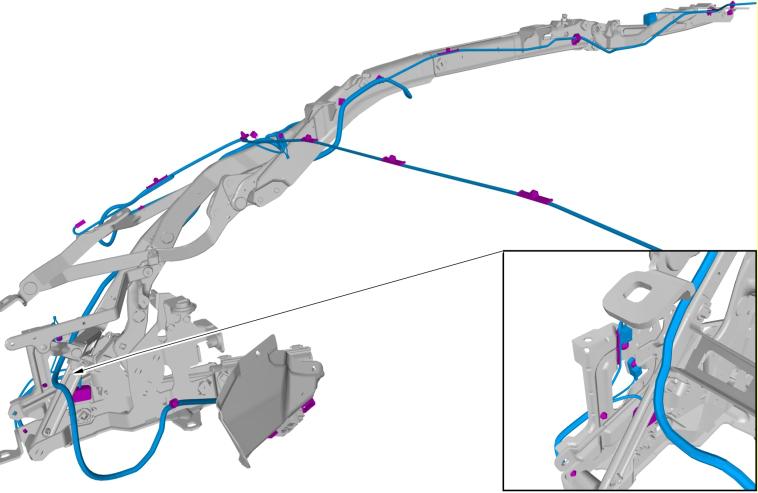

Fig 5: View Of Roof Panel Link System (1 of 6)

Courtesy of VOLVO CARS CORPORATION

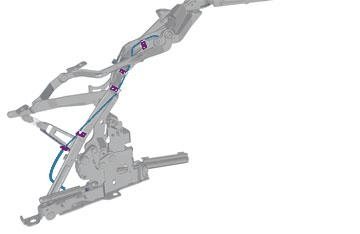

Fig 6: View Of Roof Panel Link System (2 of 6)

Courtesy of VOLVO CARS CORPORATION

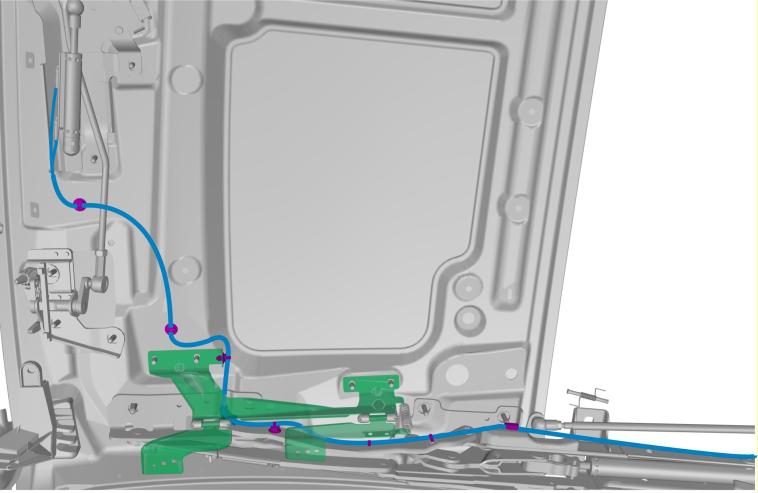

Fig 7: View Of Roof Panel Link System (3 of 6)

Courtesy of VOLVO CARS CORPORATION

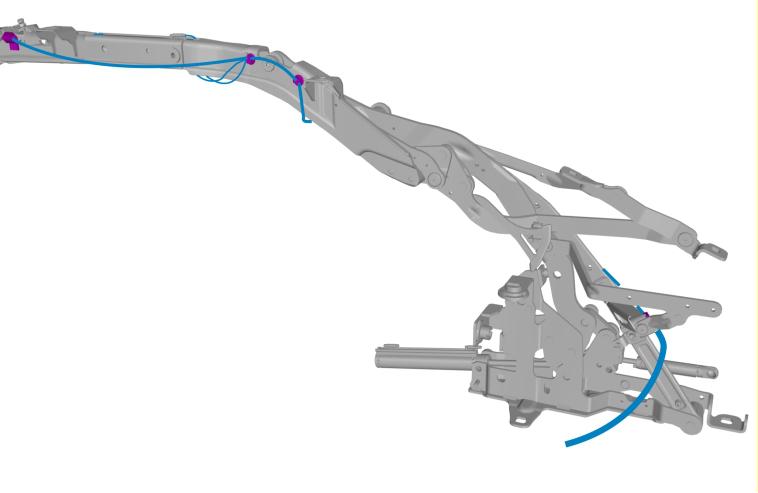

Fig 8: View Of Roof Panel Link System (4 of 6)

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that new components are installed.

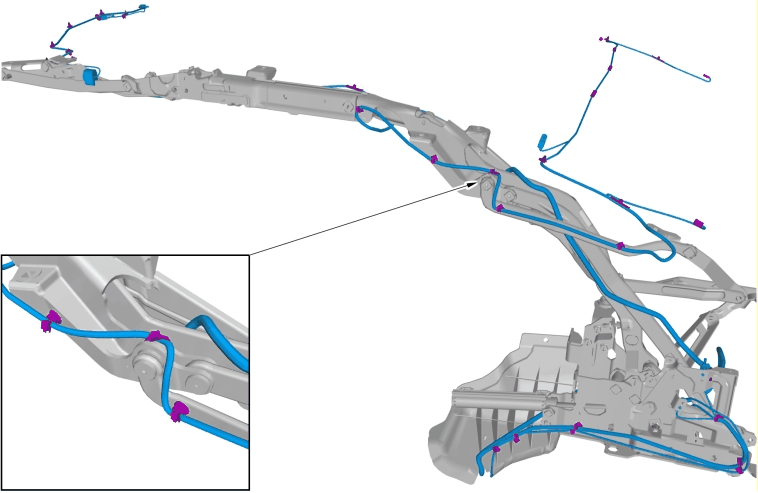

Fig 9: View Of Roof Panel Link System (5 of 6)

Courtesy of VOLVO CARS CORPORATION

Fig 10: View Of Roof Panel Link System (6 of 6)

Courtesy of VOLVO CARS CORPORATION

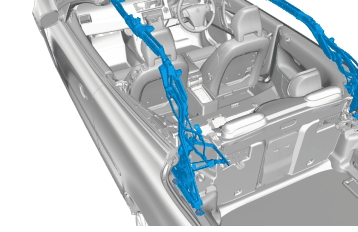

Fig 11: Identifying Roof Hinge Position

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

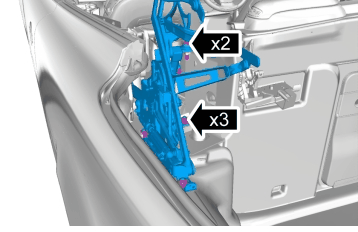

Fig 12: Locating Roof Hinge Bolts

Courtesy of VOLVO CARS CORPORATION

Loosen Convertible Top Primary Lift Cylinder, see CONVERTIBLE TOP PRIMARY LIFT CYLINDER
