Link System, Roof Panel: Installation

NOTE:

Do not install hinges or headliner until Roof Adjusting has been carried out.

To install, reverse the removal procedure.

Perform roof, adjusting, see ROOF, ADJUSTING

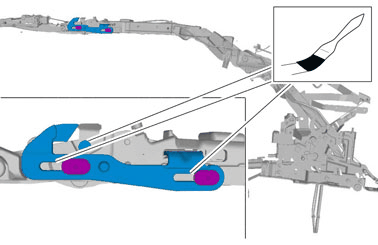

Fig 1: High temperature grease, 1161778
GLL174362Courtesy of VOLVO CARS CORPORATION

Use:  High temperature grease, 1161778

Carry out a road test.

Roof, check sealing, see ROOF, CHECKING SEALING
