Front Roof Panel Lock: Install

NOTE:

For tightening torques, see TIGHTENING TORQUE

Check and adjust the front roof panel lock. See FRONT ROOF PANEL LOCK

Install in the reverse order.

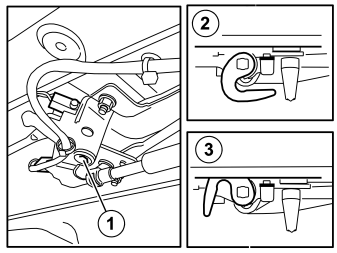

Fig 1: View Of Lock In Closed / Open Position

Courtesy of VOLVO CARS CORPORATION

Check that the lock engages and disengages by turning the screw (1).

(2) depicts the closed position and (3) depicts the open position.

Adjust the roof as described in, see ROOF, ADJUSTING .
