Installing the gear selector cable

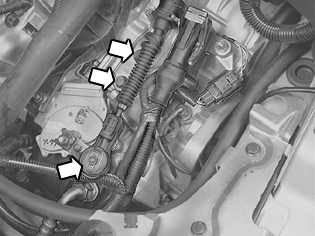

Fig 1: Identifying Gear Selector Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the large connector and the bracket. Tighten the smaller connector. Tighten to 25 Nm  . Connect the large connector
• the tie straps for the cable harness
• the cable on the lever
• the screws for the bracket. Tighten to 25 Nm  .
