Installing the rear engine mounting

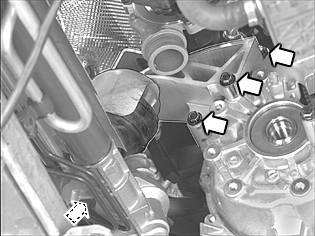

Fig 1: Identifying Rear Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the rear engine mounting on the transmission
• the 3 x M10 screws for the engine mounting. Tighten.
