Ignition Switch Connector End View (3/1)

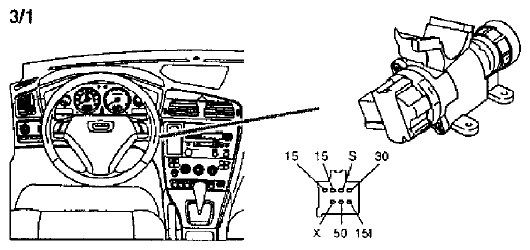

Fig 1: Ignition Switch Connector End View (3/1)
G10805926Courtesy of VOLVO CARS CORPORATION

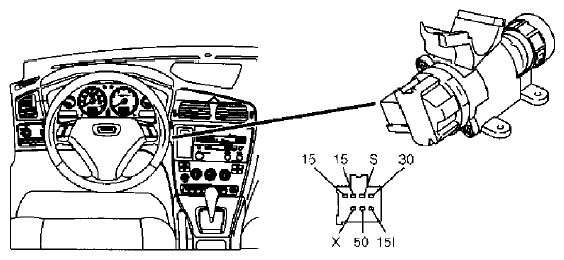

Fig 1: Ignition Switch Connector End View (3/1)
G10806182Courtesy of VOLVO CARS CORPORATION
