Key Interlock Cable, Initial Setting & Adjustment: Notes

Turn the ignition key to position 0. Move the gear shift lever to position P. Position a 5 mm drill bit in the housing above the yellow locking sleeve. This is to get the lever into the secured position. Install a new locking sleeve in position (1) as illustrated. See Fig 1.

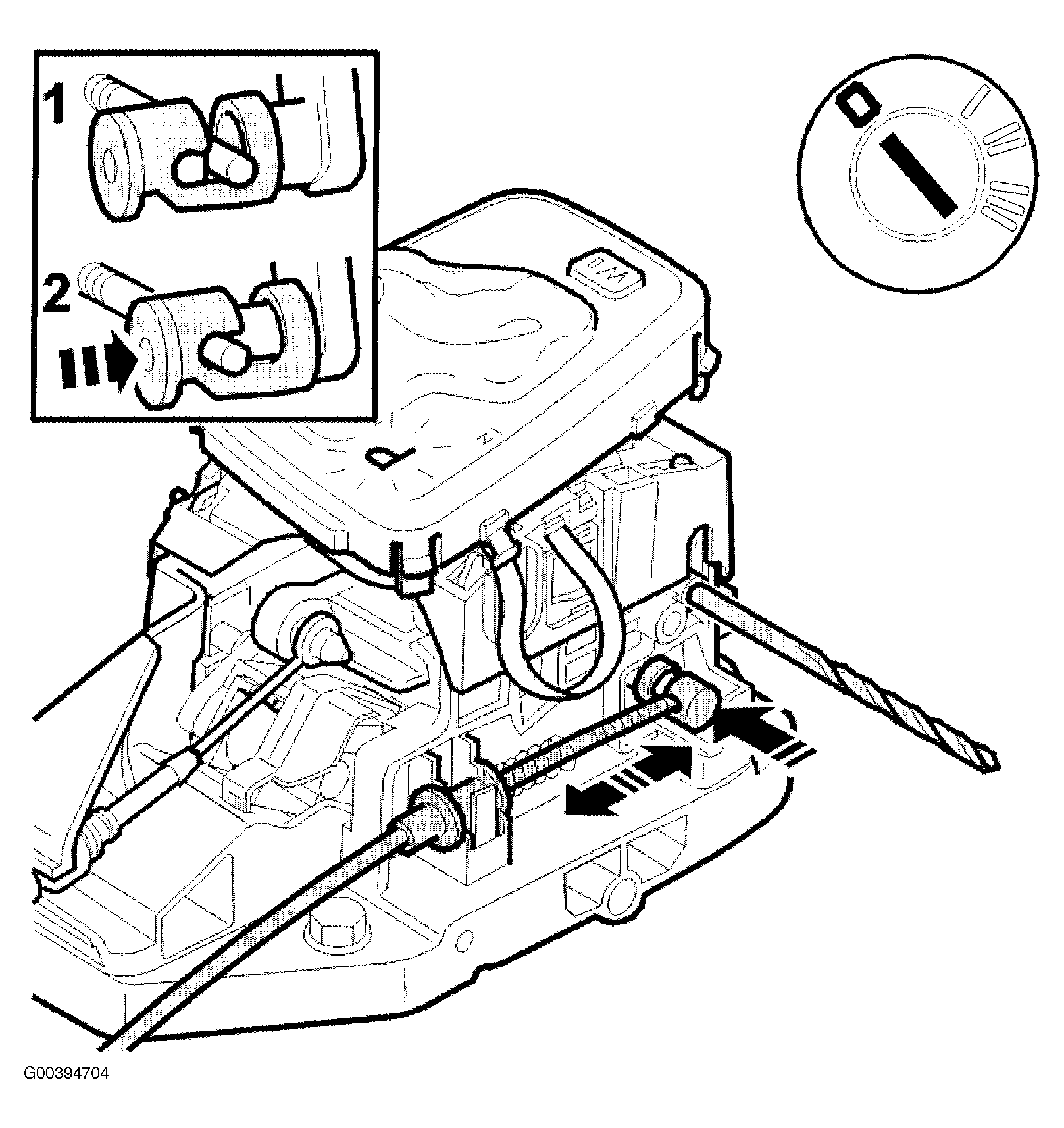

Fig 1: Adjusting Key Interlock Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the cable on the housing and on the threaded end in the groove on the yellow locking sleeve.

Press the locking sleeve in to position (2) as illustrated so that it locks the cable.
