Secondary lock

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

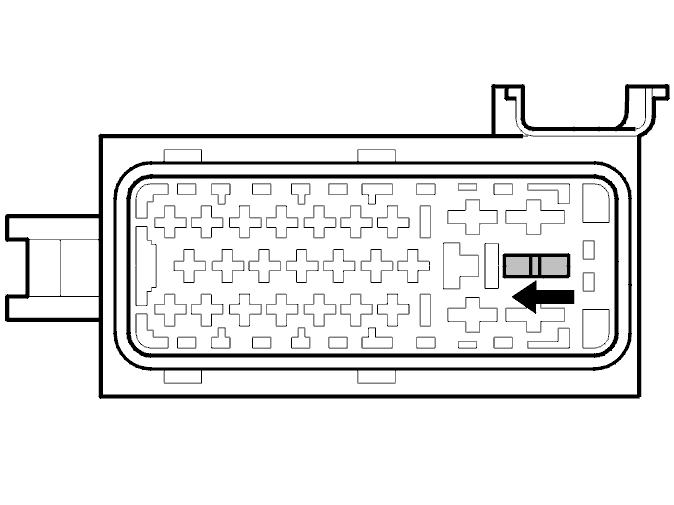

Fig 1: Identifying Catch Placed In Direction Of Arrow
GLL102201Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the catch in the direction of the arrow, as illustrated.
