Master Cylinder: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: Never under any circumstances, disassemble the master cylinder. Reassembling requires special equipment and facilities.

CAUTION: Relieve the check valve in the power brake booster; alternatively pump the brake pedal until it has no travel. This is so that no vacuum remains when the master cylinder is removed.

NOTE: Place shop rags under master cylinder to protect the paint work.

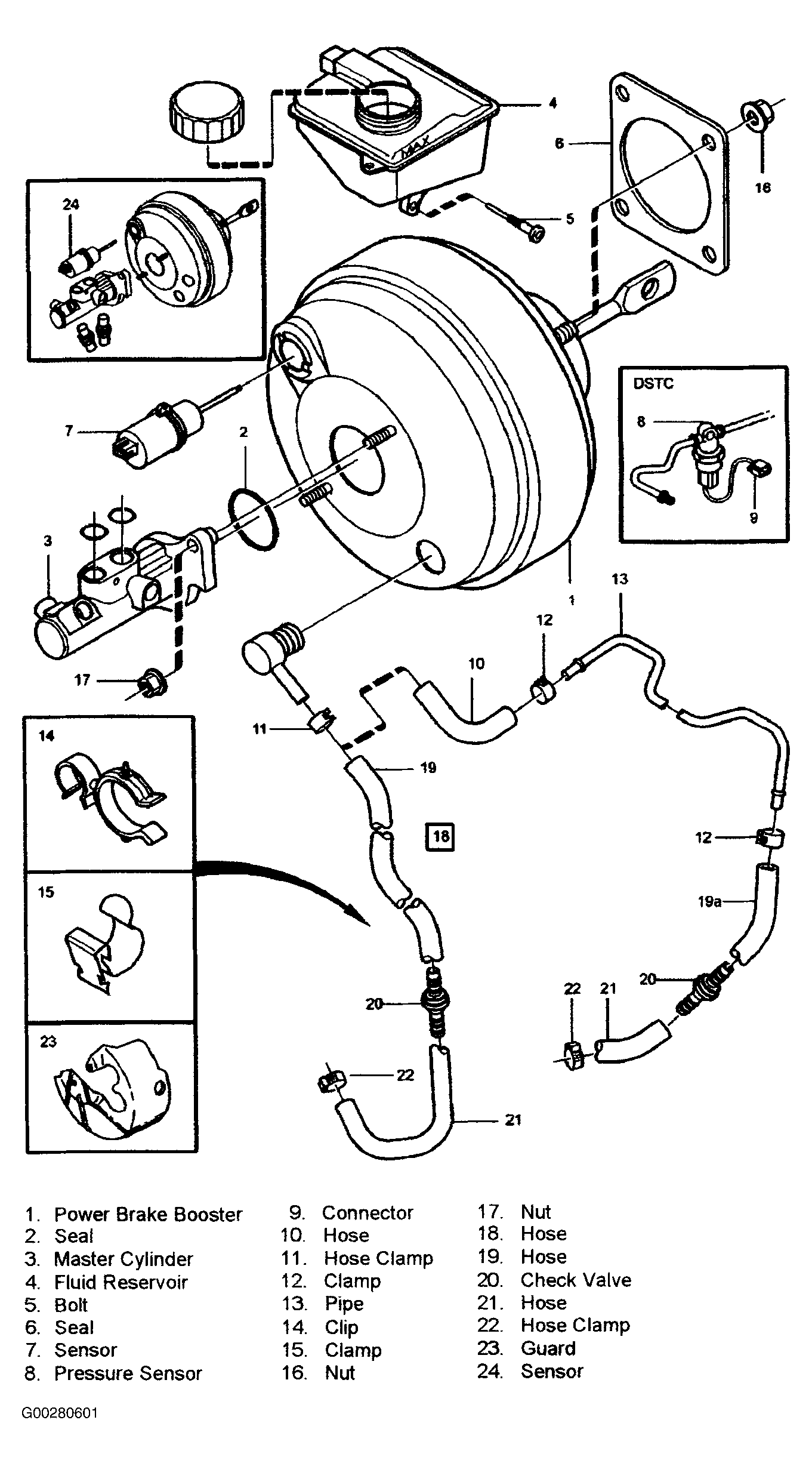

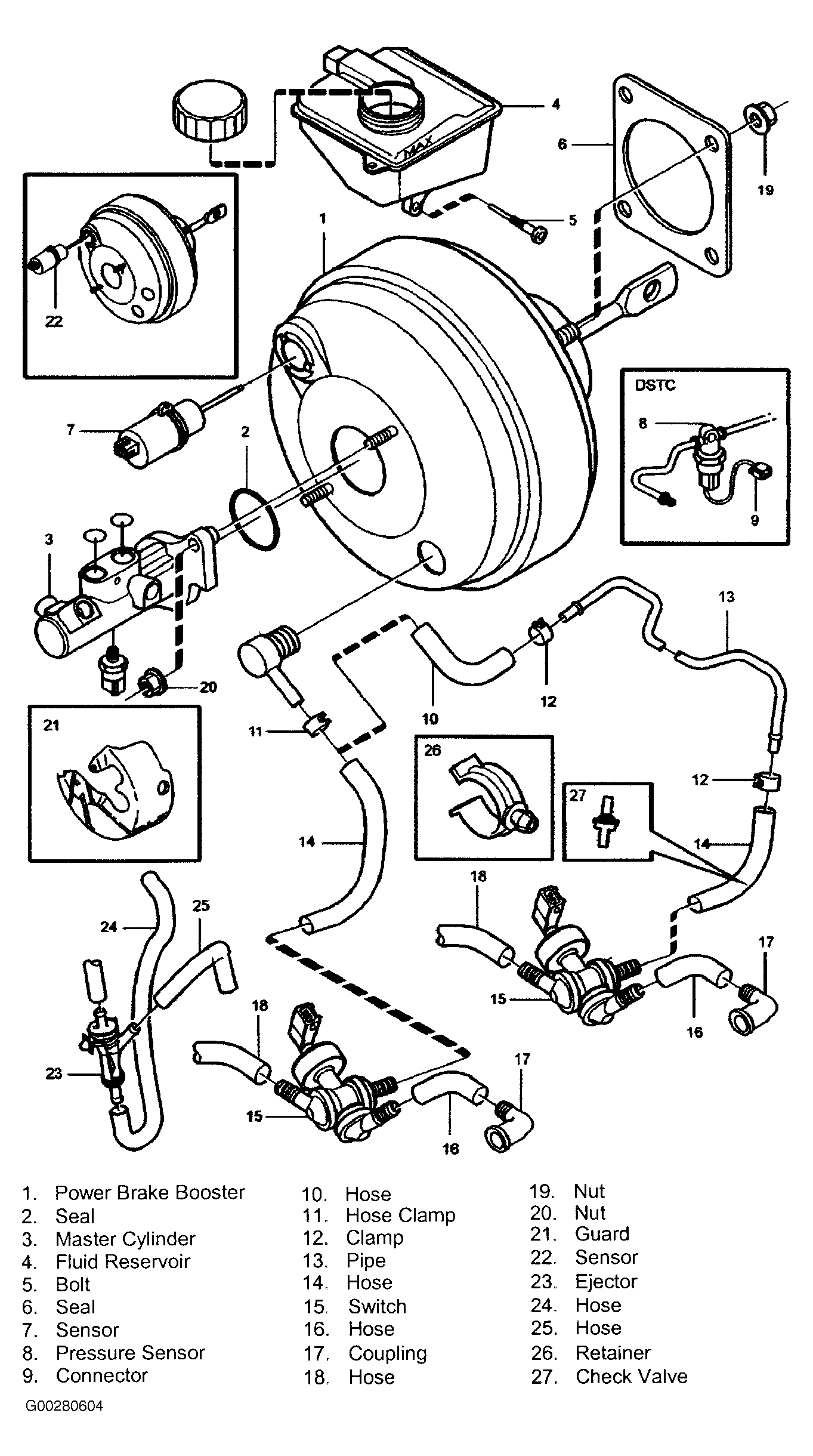

NOTE: For additional information, see Figure or Figure .
