Trip Computer: Preparations

WARNING: This page is about a different car, the 2002 Volvo V70 and 2001 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

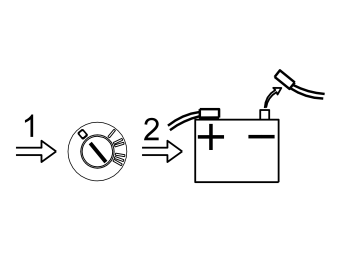

Fig 1: Disconnect Battery Negative Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the ignition key to position 0. Remove the ignition key from the ignition switch
Disconnect the battery negative lead.
NOTE:
Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

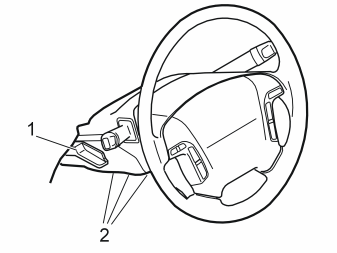

Fig 2: Identifying Steering Wheel Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the steering wheel in the lowest position. First move the lever (1) downwards. Pull the steering wheel downwards
Remove the three screws (2) from underneath the steering wheel.

Fig 3: Identifying Lever Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the upper and lower steering column cover
Remove the two screws (1)
Hold the covers apart. Remove the lever. This will not be used again.
