Transmission, checking: Check

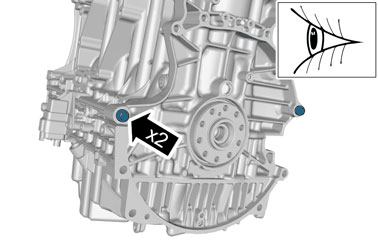

Fig 1: Identifying Visual Check Of Transmission (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION:

Make sure that the mating faces are clean and free of foreign material.

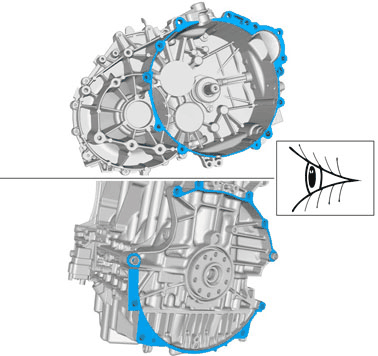

Fig 2: Identifying Visual Check Of Transmission (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Input Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Perform input shaft cleaning. Refer to Input shaft, cleaning .
