Secondary lock

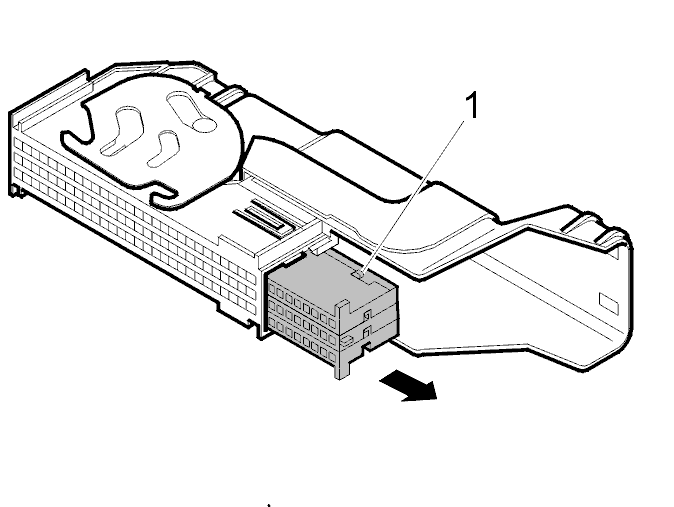

Fig 1: Identifying Receptacle Housings Removal
GLL101467Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the active catches on both sides of the socket housing and slide out the receptacle housings.

CAUTION:

Disconnect and work with only one cable at a time to minimize the risk of mixing them up.
