Primary lock

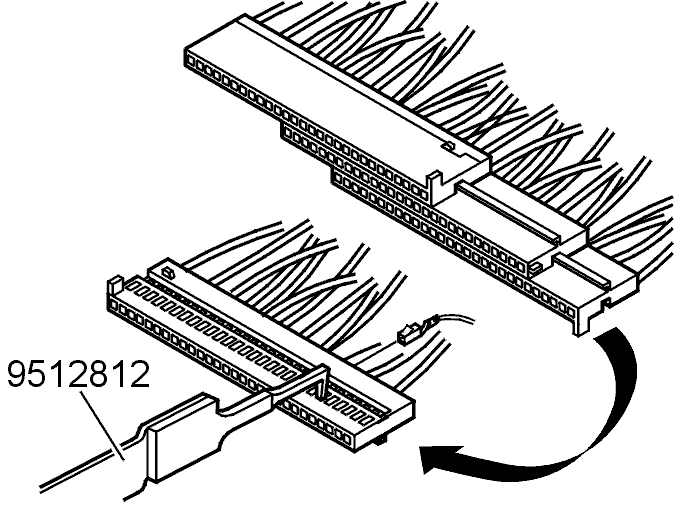

Fig 1: Identifying Locking Tab Pressed In On Cable Terminal Using Special Tool 9512812
GLL101468Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the locking tab on the cable terminal and carefully pull out the cable and the cable terminal. Use tool 9512812 or tool 9512637 , as illustrated.
