Diagnostic trouble code (DTC) information

Condition

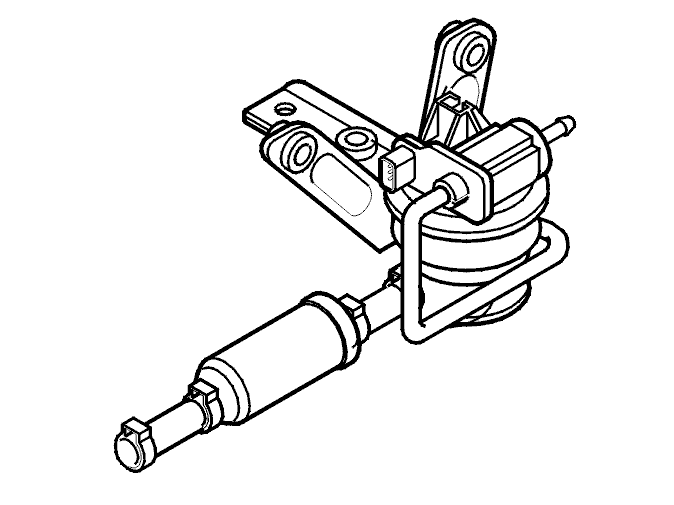

Fig 1: Identifying Leak Diagnostic Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

The control module performs a function test of the leak diagnostic system. Diagnostic trouble code (DTC) ECM-66 is stored if the movement of the membrane in the leak diagnostic pump from active position to resting position is too slow. For further information about leak diagnostics, see Leak diagnostic .

Substitute Value

Leak diagnostics disabled.

Possible Source

• Blocked filter between the leak diagnostic pump and the EVAP canister
• Blocked hose between the leak diagnostic pump and the EVAP canister
• Blocked hose between the EVAP canister and the fuel tank
• Defective leak diagnostic pump.

Fault symptom[s]

• Malfunction indicator lamp (MIL) lit.
