Checking injectors

Connect an ohmmeter between injector connector terminals 1 and 2 (injector side).

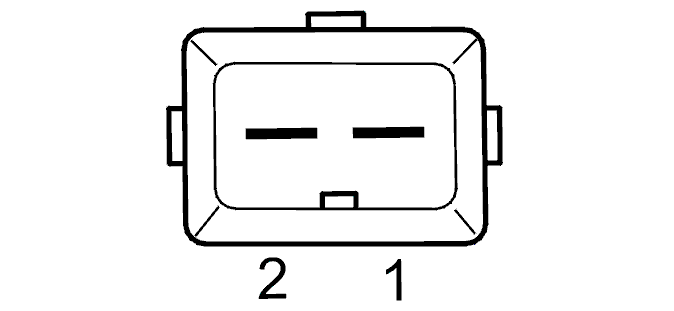

Fig 1: Identifying Injector Connector Terminals (Injector Side)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

The ohmmeter should read approximately 14-15 Ω at +20 °C.

• OK

  Refer to Checking wiring and terminals

• NOT OK

  Refer to Defective injector
