Checking the cable and components

Check the signal cable between boost pressure sensor terminal 3 and control module terminal 13. Check the power supply cable between boost pressure sensor terminal 1 and control module terminal 74. Check these cables for an open-circuit according to Open-circuit, permanent faults .

Check boost pressure sensor terminal 3 for a short-circuit to ground according to Short-circuit to ground, permanent faults .

HINT: The boost pressure sensor receives 5 V from control module terminal 74.

If no fault is found during the above fault-tracing, try a new boost pressure sensor according to Replacing the atmospheric pressure sensor if necessary.

Other information:

• To connect the breakout box, see Connecting the breakout box. EMS 2000
• For information about signals, see Signal specification .

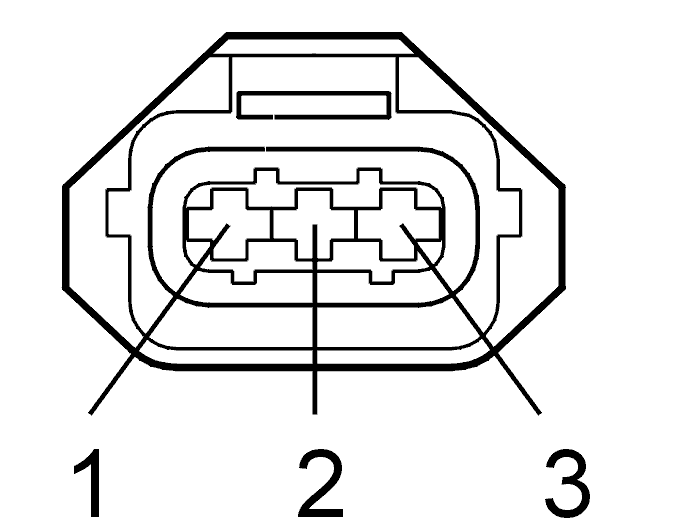

Fig 2: Identifying Boost Pressure Sensor Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Boost Pressure Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Refer to Verification
