Checking the power cable

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS OF NORTH AMERICA.

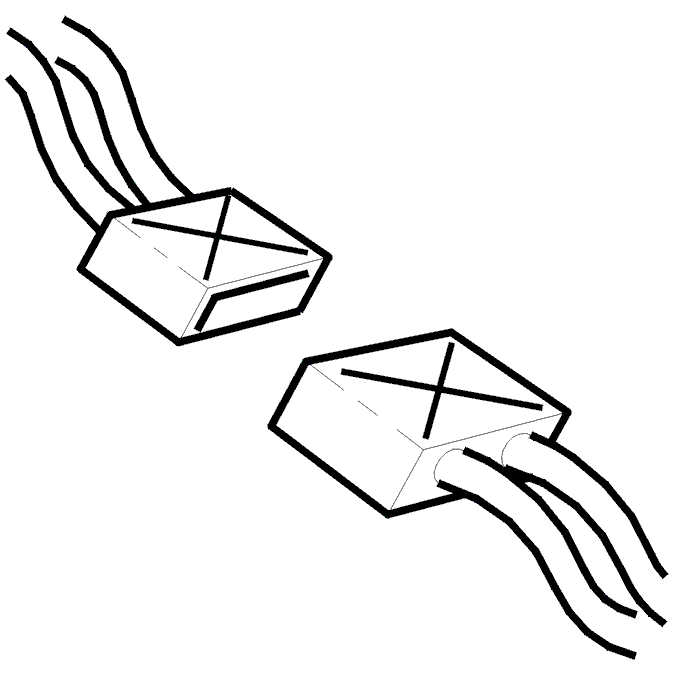

Fig 2: Identifying Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition on
• Atmospheric pressure sensor connector disconnected.

  Connect a voltmeter between atmospheric pressure sensor connector terminal 1 (control module side) and the ground terminal.

  Fig 3: Identifying Atmospheric Pressure Sensor Connector Terminals

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 4: Identifying Voltage Display

  Courtesy of VOLVO CARS OF NORTH AMERICA.

The voltmeter should read approximately 5 V.

• OK

  Refer to Checking the signal cable

• NOT OK

  Refer to Checking the power cable

Check the cable between atmospheric pressure sensor connector terminal 1 (control module side) and engine control module (ECM) terminal 78 for an open-circuit according to Open-circuit, permanent faults .

Remedy as necessary.

Fig 1: Identifying Atmospheric Pressure Sensor Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying EMS2000

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
