Install the control module

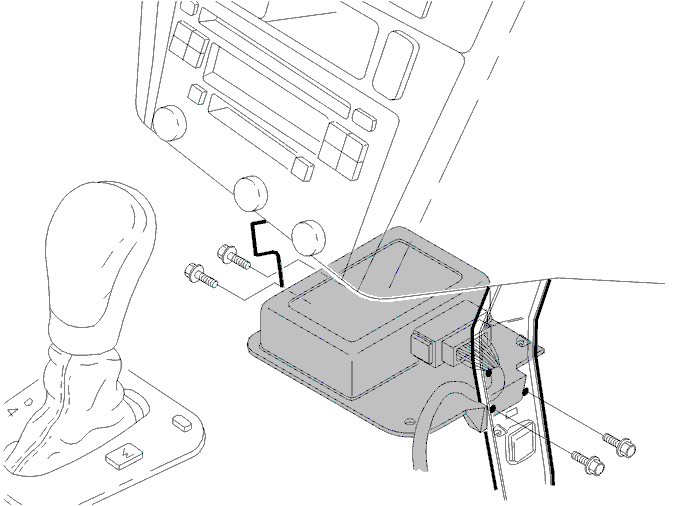

Fig 1: Identifying Removing/Installing Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• control module connector
• the clip for the wiring
• screw the bracket into place with the control module (4x screws)
• the center console according to Rear center console .
