Climate Units - Removal, Replacement And Installation
>>
Climate Control Module (2000)
>>
Control module, climate
>>
Control module, replacing
>>
Installing the front panel
Installing the front panel

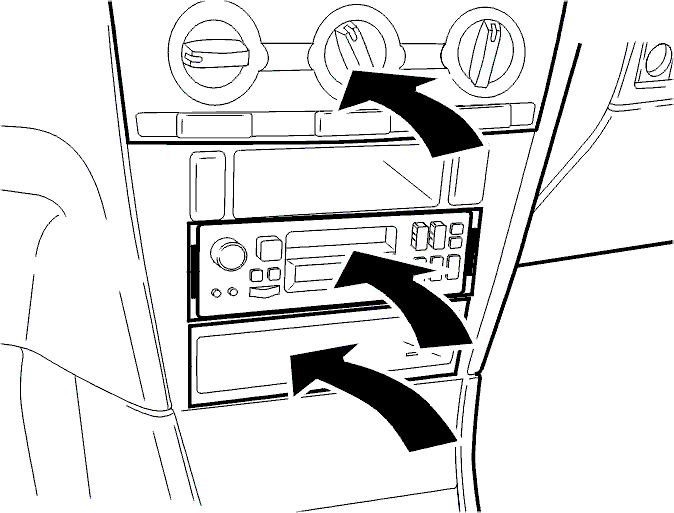

Fig 1: Identifying Front Panel, Storage Compartment And Radio
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install the front panel
Install the storage compartment in the center console
Connect the connectors and the antenna cable to the radio
Install the radio.
Courtesy of VOLVO CARS OF NORTH AMERICA.
