Checking cables

Check the cable between connector terminal 2 for the camshaft position (CMP) sensor and engine control module (ECM) connector terminal 58. Check the cable connector terminal 3 for the camshaft position (CMP) sensor (control module side) and engine control module (ECM) terminal 83. Check these cables for an open-circuit according to Open-circuit, permanent faults and for a short-circuit to ground according to Short-circuit to ground, permanent faults and for a short-circuit to supply voltage according to Short-circuit to supply voltage. Permanent faults .

Remedy as necessary.

Fig 1: Identifying EMS2000

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

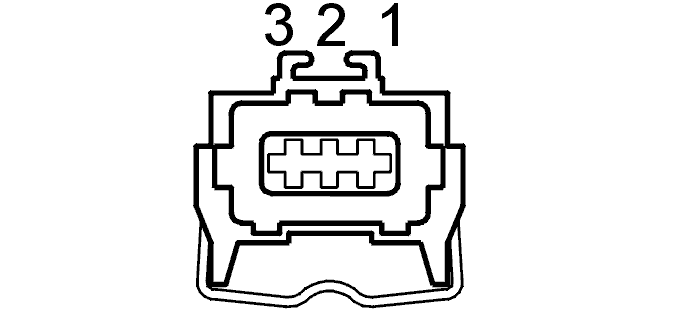

Fig 3: Identifying Camshaft Position (CMP) Sensor Connector Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Verification
