Checking for a short-circuit

FENIX 5.1

Check the cable between engine control module (ECM) terminal 41 and DSA control module terminal 5 for a short-circuit to ground according to Short-circuit to ground, permanent faults .
On vehicles with automatic transmission: Also check the cable between engine control module (ECM) terminal 41 and automatic transmission control module (TCM) terminal 38 for a short-circuit to ground according to Short-circuit to ground, permanent faults .

EMS 2000

Check the cable between engine control module (ECM) terminal 36 and DSA control module terminal 5 for a short-circuit to ground according to Short-circuit to ground, permanent faults .

Other information

To connect the breakout box for DSA, see Connecting the breakout box. DSA .
To connect the breakout box for FENIX 5.1, see Connecting the breakout box. FENIX 5.1 .
To connect the breakout box for EMS 2000, see Connecting the breakout box. EMS 2000 .

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

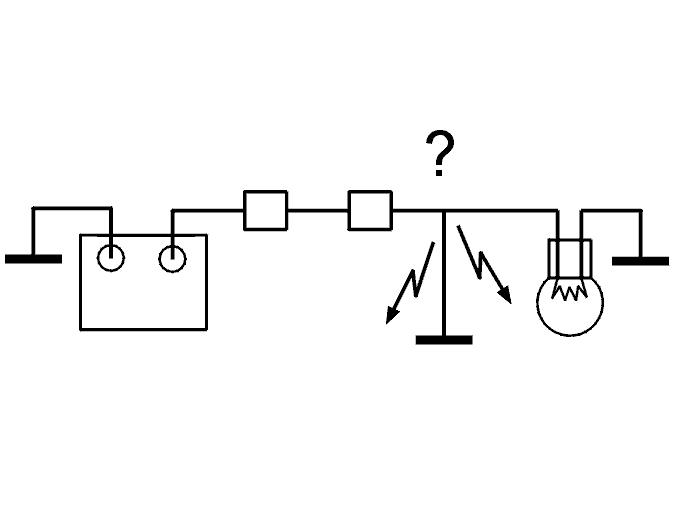

Fig 2: Checking For Short Circuit To Ground

Courtesy of VOLVO CARS OF NORTH AMERICA.

FENIX 5.1

Check the cable between engine control module (ECM) terminal 41 and DSA control module terminal 5 for a short-circuit to supply voltage according to Short-circuit to supply voltage. Permanent faults .
On vehicles with automatic transmission: Also check the cable between engine control module (ECM) terminal 41 and automatic transmission control module (TCM) terminal 38 for a short-circuit to supply voltage according to Short-circuit to supply voltage. Permanent faults .

EMS 2000

Check the cable between engine control module (ECM) terminal 36 and DSA control module terminal 5 for a short-circuit to supply voltage according to Short-circuit to supply voltage. Permanent faults .

Other information

To connect the breakout box for DSA, see Connecting the breakout box. DSA .
To connect the breakout box for FENIX 5.1, see Connecting the breakout box. FENIX 5.1 .
To connect the breakout box for EMS 2000, see Connecting the breakout box. EMS 2000 .

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

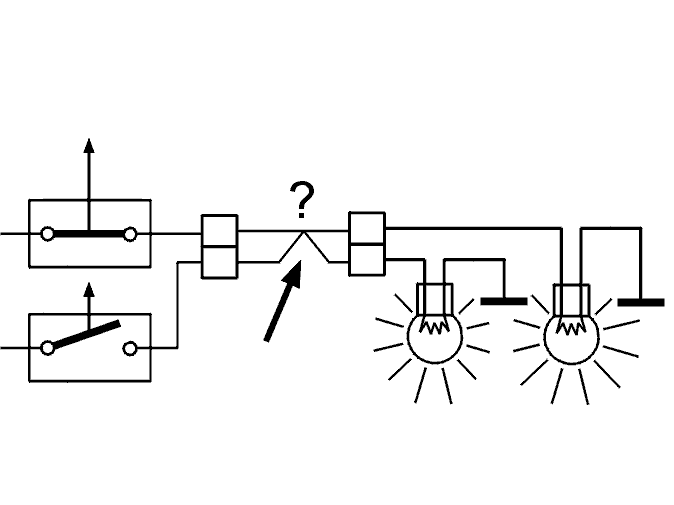

Fig 2: Checking For Short Circuit

Courtesy of VOLVO CARS OF NORTH AMERICA.
