Ignition, Sensors And Control Systems - Removal, Replacement And Installation
>>
Anti-Spin System Switch And Control Module, Replacing (B4204T3 (Ca) (Us); 2001-2003)
>>
DSA control module, replacement
>>
Replacing the DSA control module
Replacing the DSA control module

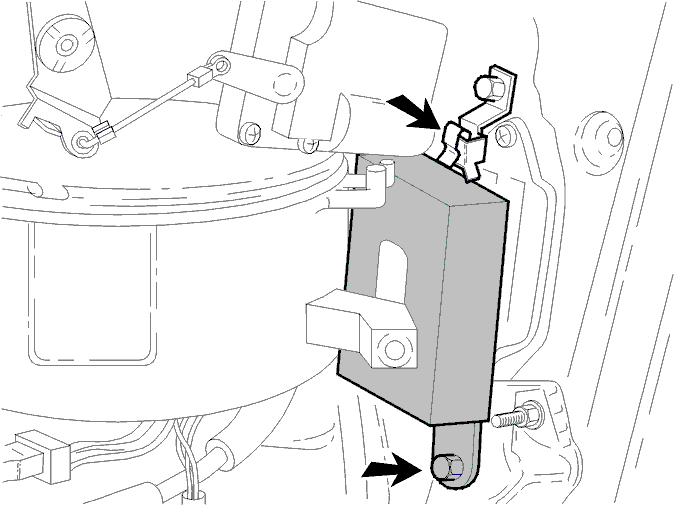

Fig 1: Identifying DSA Control Module, Bracket, And Screw
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove A-pillar trim at right-hand side.
Remove fixing screw and draw out DSA control module downwards from the bracket.
