Checking the response code

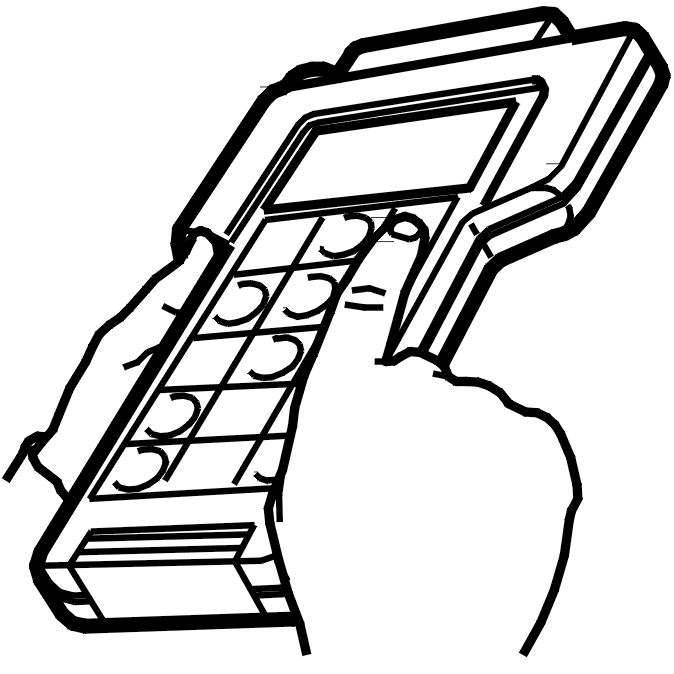

Fig 2: Identifying Scan Tool

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Activate the Scan Tool (ST) in MODE 2.
• Move the ON/OFF switch to the ON position.
• Activate the SET- switch
• Check that the SET+ function is OK by checking that response code 1-3-1 is returned.

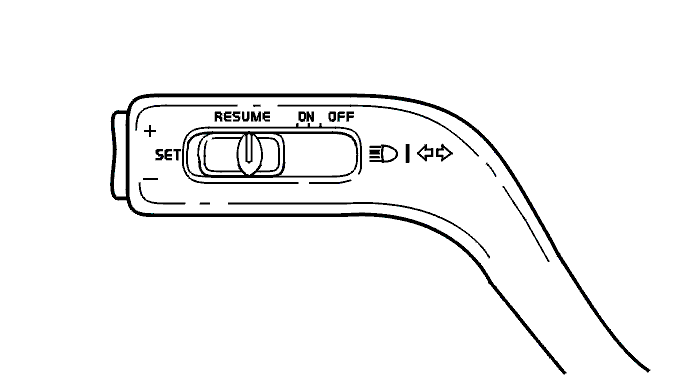

Fig 3: Programming Cruise Control

Courtesy of VOLVO CARS OF NORTH AMERICA.

Is response code 1-3-1 returned?

1. Yes, response code 1-3-1 is returned. Troubleshooting has been completed.
2. No, response code 1-3-1 is not returned. Refer to Checking other response codes .
3. No, response code 3-1-1 is returned instead. Refer to Checking response code 3-1-1 .
