Checking Switch Key Reminder
>>
Notes
Checking Switch Key Reminder: Notes

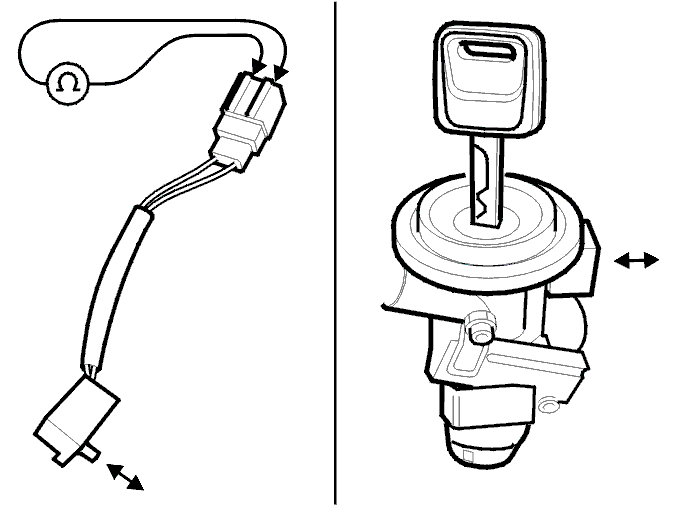

Fig 1: Measuring The Resistance
Courtesy of VOLVO CARS OF NORTH AMERICA.
Measure the resistance:
switch open:
∞ Ω
switch pushed in:
0 Ω
.
Check when the key is pushed in the ignition that the bracket is moved inside ignition column.
