Diagnostic trouble code (DTC) information
Condition

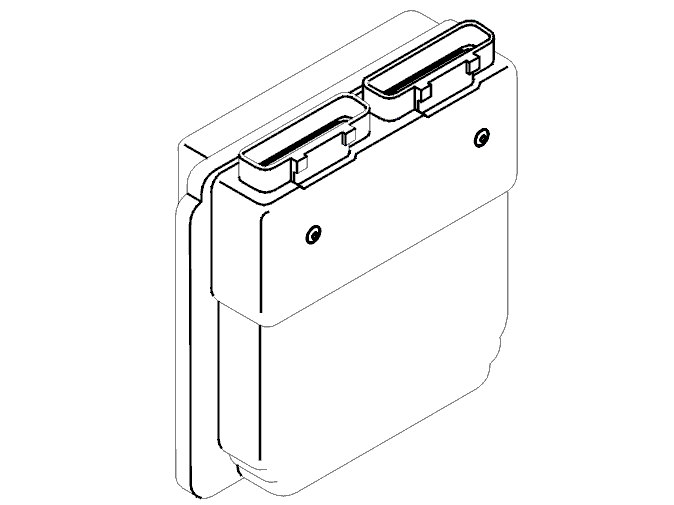

The gas level sensor in the gas tank transmits the gas level to the control module. Using the signal from the gas level sensor, the combined instrument panel transmits information to the LPG control module indicating the status of the gas level.
When the gas level is low and the LPG control module receives a signal indicating this from the combined instrument panel terminal (terminal #B12), gas power is switched off and the engine switches to gasoline power. Gas operation is permitted when the gas level is above the lowest level.
Diagnostic trouble code (DTC) CI-0D is stored if the signal to the LPG control module is too low.
Substitute Value
None.
Possible Source
- Short-circuit to ground in the signal cable.
Fault symptom[s]
- The engine will not run on gas.
