Diagnostic trouble code (DTC) information

Condition

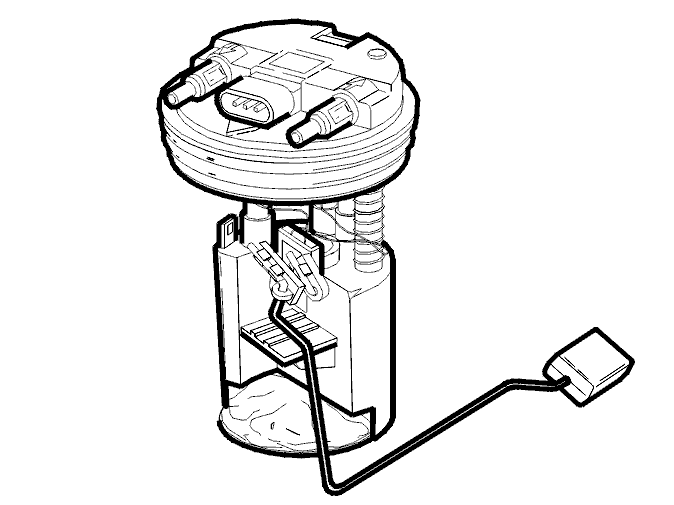

Fig 1: Identifying Fuel Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Diagnostic trouble code (DTC) CI-03 is stored in the combined instrument panel if the combined instrument panel registers a fault in the signal cable from the fuel level sensor.

Substitute Value

None.

Possible Source

• short-circuit to ground in the signal cable
• defective fuel level sensor.

Fault symptom[s]

• fuel level reading faulty.
